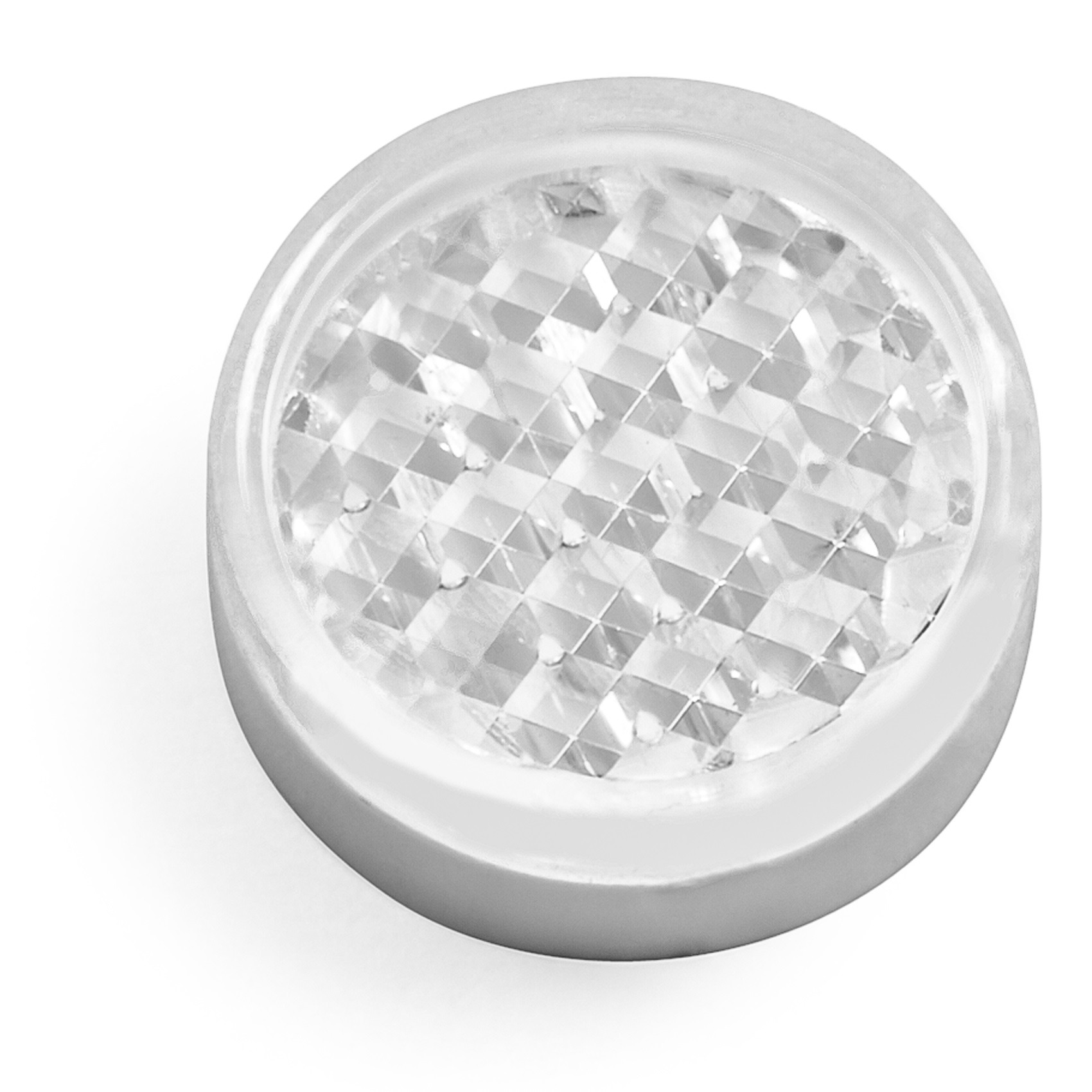

10DF ZSB
The fine structured reflectors are particularly suitable for laser sensors with a very small light beam. In case of small movements, reflectors with large prisms can cause interruptions. The fine structured reflectors consist of many microstructured prisms, which guarantee a reliable and constant response.
Additional information
| Type: | Reflectors for photoelectric sensor |
| Item: | 10DF ZSB |
| Item No.: | 10192510 |
| Format (LxWxH): | Keine Angabe |
| Format (⌀ x height): | 10 x 4 mm |
| Reflective area (LxW): | Keine Angabe |
| Reflective area (⌀): | 8,5 mm |
| Mounting: | to be glued (without tape) |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | hexagonal |
| Optic size: | Fine triple SW1,5 |
| Polarizing rotation: | yes |
| Application: | Standard sensors / laser photoelectric sensors |
| Material reflector: | PMMA clear |
| Material bracket: | PMMA high impact white |
