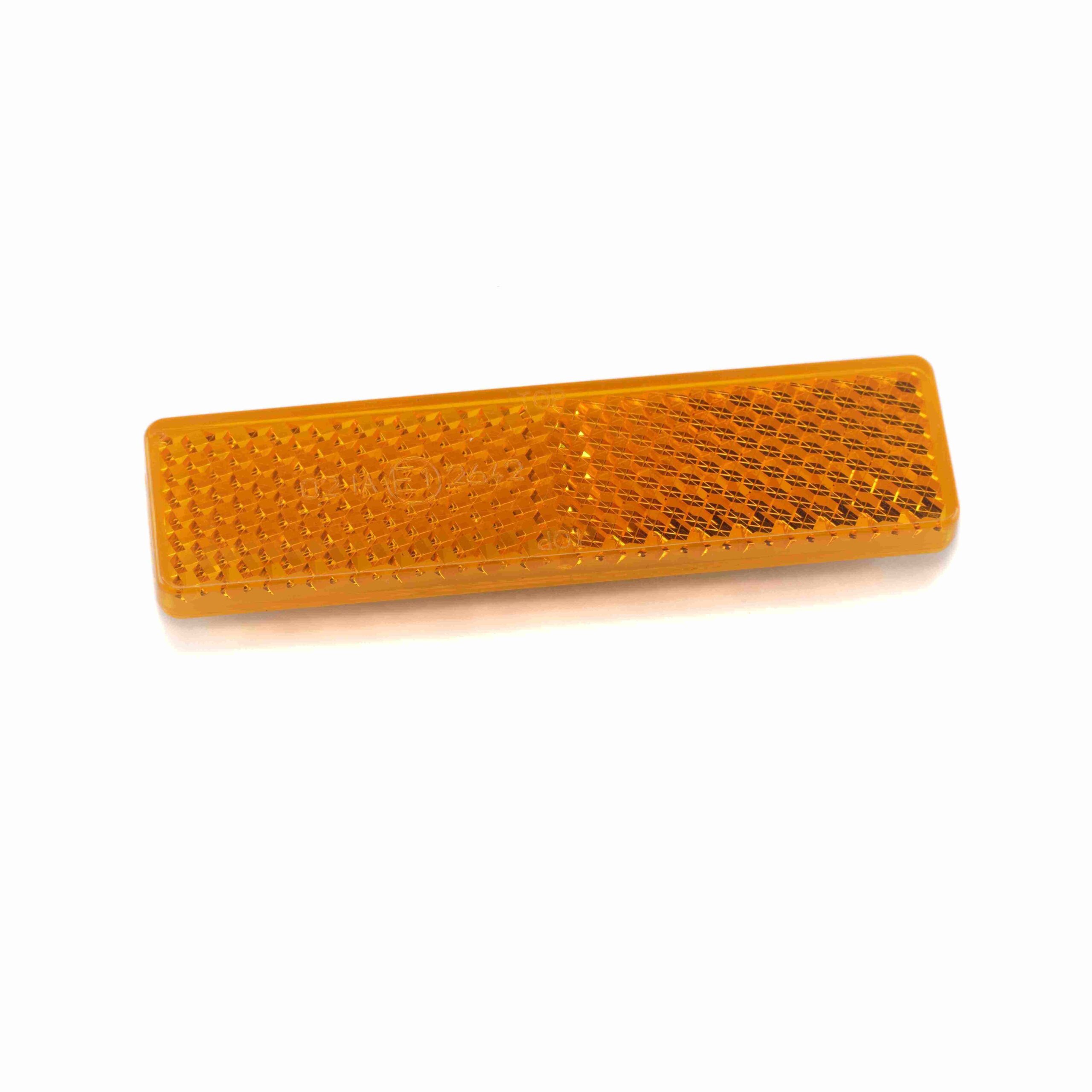

19×75 ECE amber ZSB
Reflectors for cars, trucks, bicycles, trailers, agricultural machinery. These reflectors exceed the legal requirements and increase safety in road traffic due to the signal effect.
Additional information
| Type: | Keine Angabe |
| Item: | 19x75 ECE amber ZSB |
| Item No.: | 08022520 |
| Format (LxWxH): | 75 x 19 x 5,4 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 72,4 x 16,1 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (without tape) |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | hexagonal |
| Optic size: | Standard triple SW2,3 |
| Polarizing rotation: | Keine Angabe |
| Application: | Keine Angabe |
| Material reflector: | PMMA amber |
| Material bracket: | PMMA high impact yellow |
Thank you for your interest in our product:
19×75 ECE amber ZSB / Productnumber: 08022520
19×75 ECE amber ZSB / Productnumber: 08022520
The following downloads are available:
Download PDF
Download STEP
Download DXF
