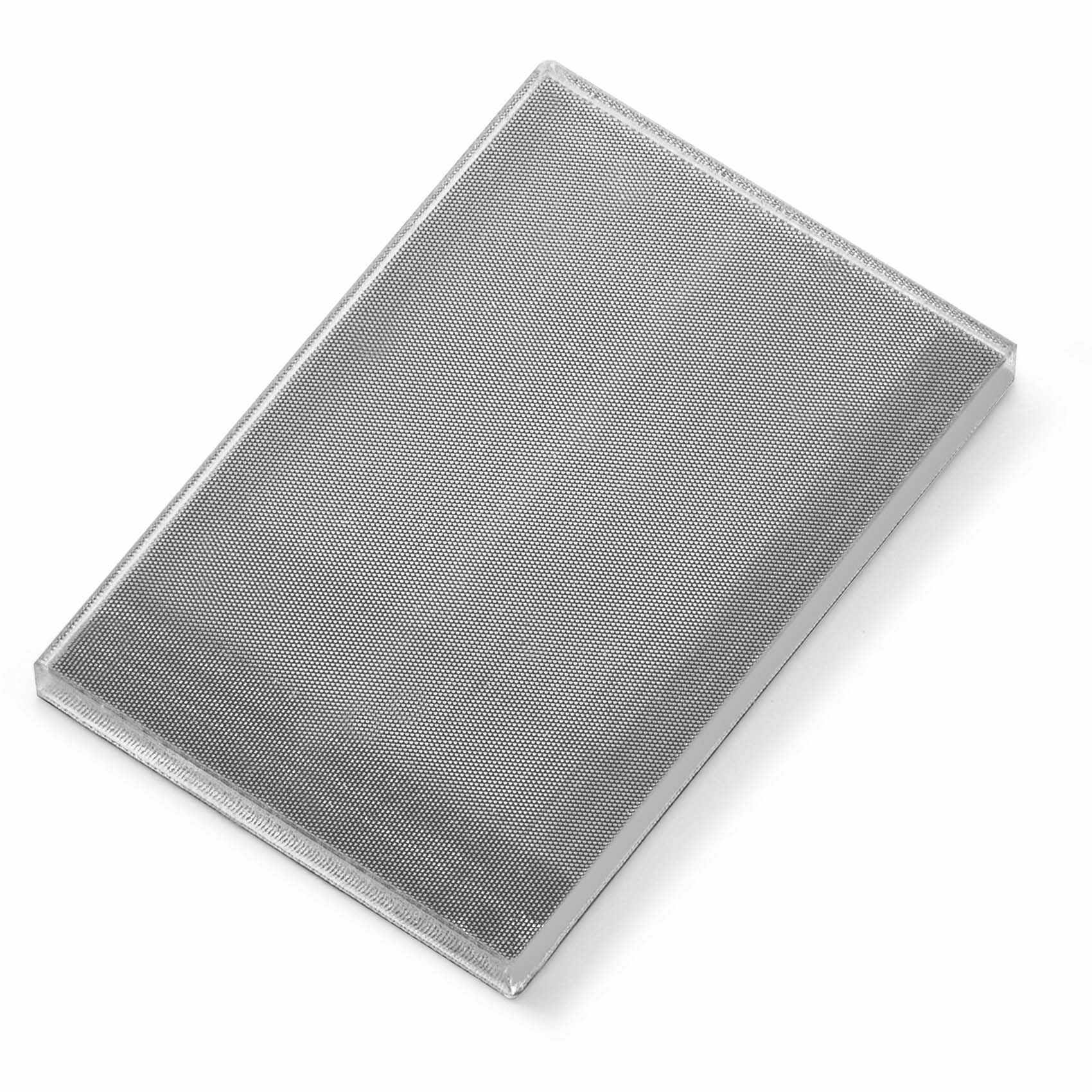

20×30 Micro
Reflectors with microstructure are perfectly suited for lasersensors with very fine light beam. These reflectors are characterized by excellent homogeneity and very good reflection values. This ensures that the same reflection values are achieved at each point of the reflector. Especially in the case of vibrations and movements of the light spot, a reliable operation of the sensor is ensured. The reflectors can be used for sensors with and without polarizing filters. The micro reflectors must be mounted in a direction-oriented manner so that the outer edges of the reflector are always parallel to the sensor edges.
Additional information
| Type: | Reflectors for photoelectric sensor |
| Item: | 20x30 Micro |
| Item No.: | 12092111 |
| Format (LxWxH): | 30 x 20 x 2,5 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 30 x 20 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | Rhombus |
| Optic size: | Micro triple SW0,3 |
| Polarizing rotation: | yes, regard mounting instuction |
| Application: | Standard sensors / laser photoelectric sensors |
| Material reflector: | PMMA clear |
| Material bracket: | 0 |
20×30 Micro / Productnumber: 12092111
