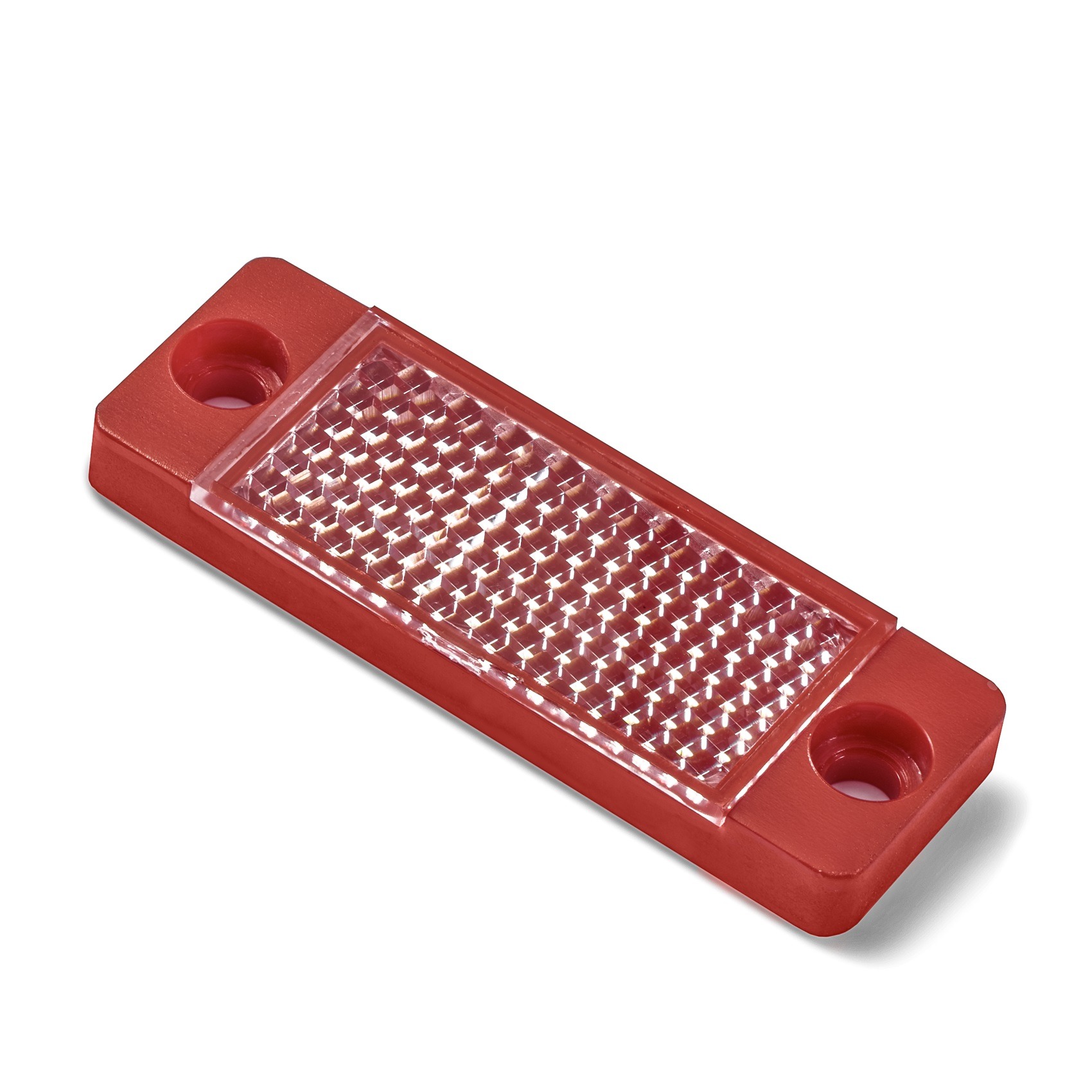

20×40 LH chem ZSB
Due to the material used, our CHEM plastic reflectors are resistant to many chemicals that conventional reflectors are not resistant to. This provides longer life in critical applications and lowers operating costs as these reflectors are less expensive than other CHEM reflectors. The Chem reflectors are ECOLAB certified
Additional information
| Type: | Reflectors for photoelectric sensor |
| Item: | 20x40 LH chem ZSB |
| Item No.: | 07332510 |
| Format (LxWxH): | 60 x 20 x 6,6 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 37,8 x 16,7 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be screwed |
| Chemical resistance: | increased chemical resistance |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | hexagonal |
| Optic size: | Standard triple SW2,3 |
| Polarizing rotation: | yes |
| Application: | Standard sensors |
| Material reflector: | PET clear |
| Material bracket: | PET red |
Thank you for your interest in our product:
20×40 LH chem ZSB / Productnumber: 07332510
20×40 LH chem ZSB / Productnumber: 07332510
The following downloads are available:
Download PDF
Download STEP
Download DXF
Do you have questions or need more information? Do not hesitate to contact us, we are happy to help you.
