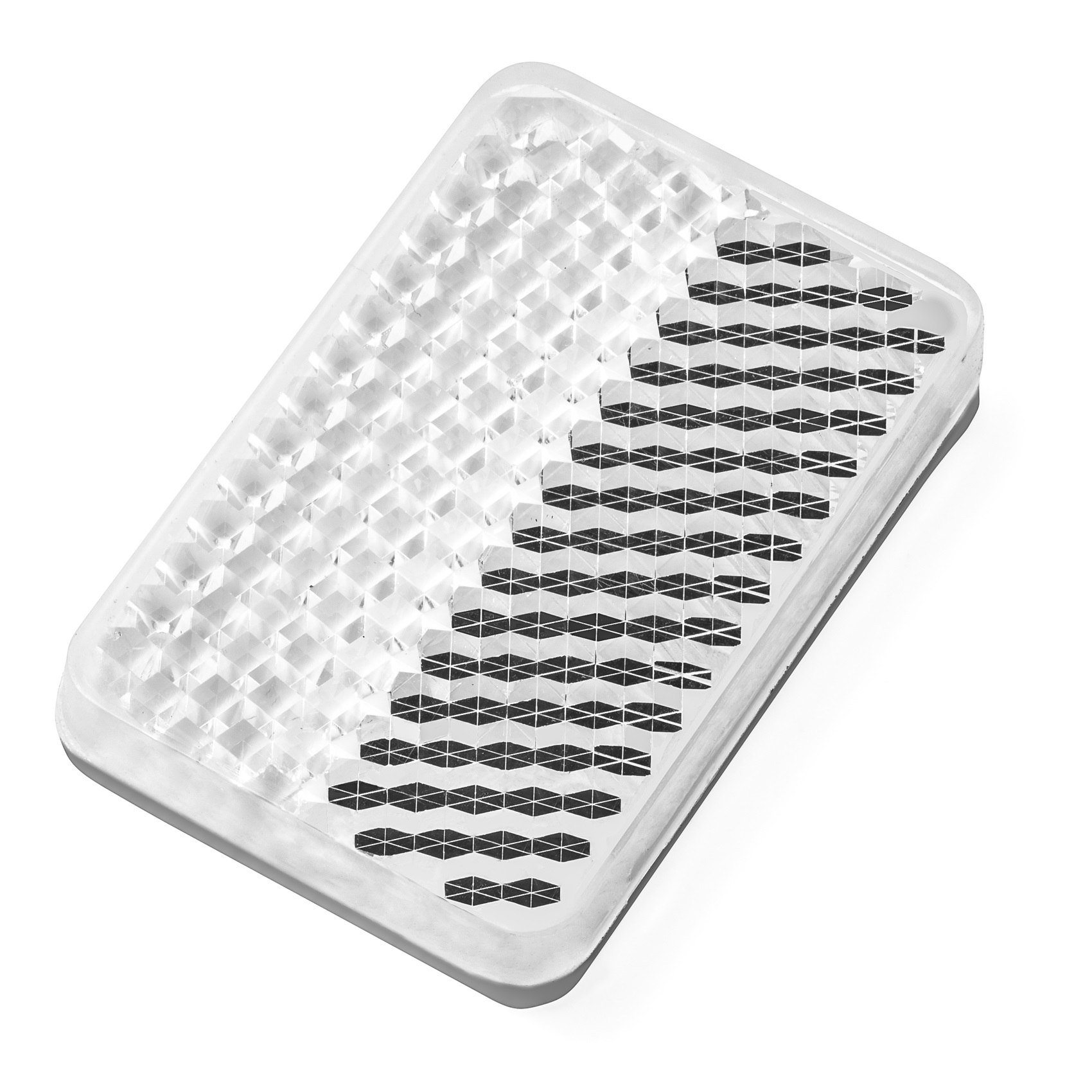

31×46 L sk ZSB
The standard reflectors have highest reflection values and ranges. These reflectors are best suited for applications with standard sensors.
Additional information
| Type: | Reflectors for photoelectric sensor |
| Item: | 31x46 L sk ZSB |
| Item No.: | 80092511 |
| Format (LxWxH): | 47,8 x 31,8 x 6,8 (7,6) mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 45 x 28,6 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | hexagonal |
| Optic size: | Standard triple SW3 |
| Polarizing rotation: | yes |
| Application: | Standard sensors |
| Material reflector: | PMMA clear |
| Material bracket: | PMMA high impact white |
Thank you for your interest in our product:
31×46 L sk ZSB / Productnumber: 80092511
31×46 L sk ZSB / Productnumber: 80092511
The following downloads are available:
Download PDF
Download STEP
Download DXF
