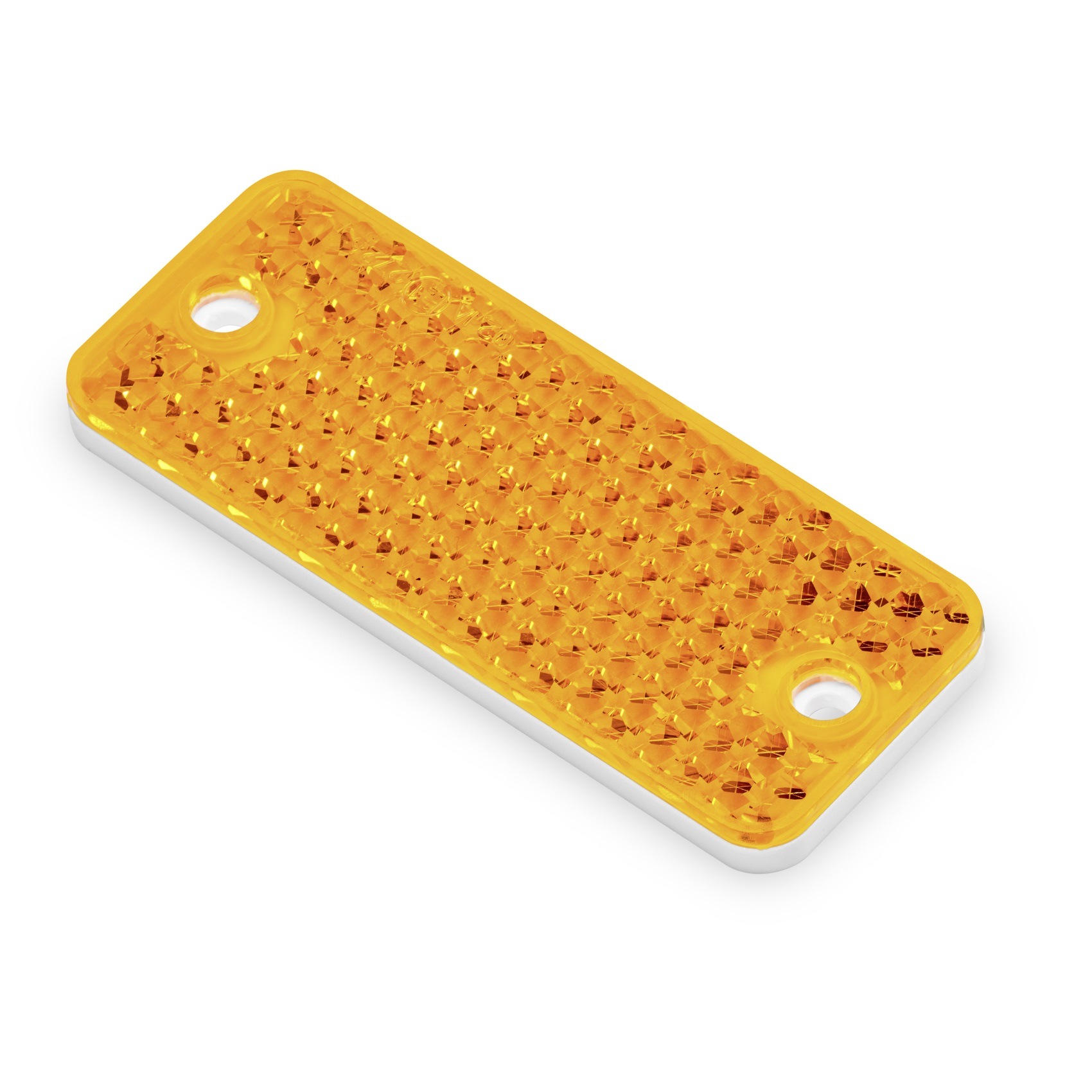

38×95 ECE sk amber ZSB
Reflectors for cars, trucks, bicycles, trailers, agricultural machinery. These reflectors exceed the legal requirements and increase safety in road traffic due to the signal effect.
Additional information
| Type: | Keine Angabe |
| Item: | 38x95 ECE sk amber ZSB |
| Item No.: | 04492521 |
| Format (LxWxH): | 95 x 38 x 6,8 (7,6) mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 91,14 x 35,2 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | rhombus modified |
| Optic size: | Rhombus SW2,6 |
| Polarizing rotation: | Keine Angabe |
| Application: | Keine Angabe |
| Material reflector: | PMMA amber |
| Material bracket: | PMMA high impact white |
Thank you for your interest in our product:
38×95 ECE sk amber ZSB / Productnumber: 04492521
38×95 ECE sk amber ZSB / Productnumber: 04492521
The following downloads are available:
Download PDF
Download STEP
Download DXF
Do you have questions or need more information? Do not hesitate to contact us, we are happy to help you.
