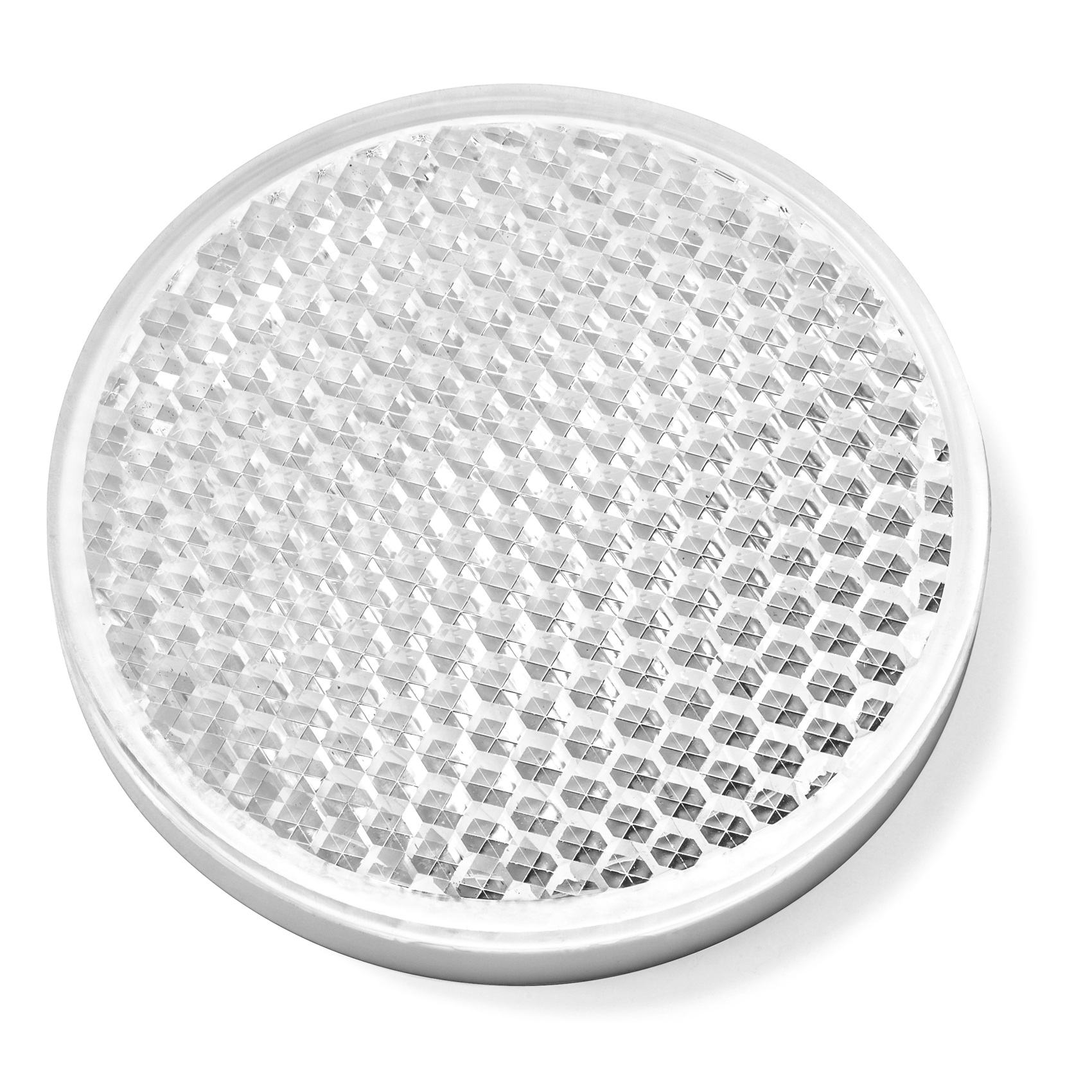

40DF sk ZSB
The standard reflectors have highest reflection values and ranges. These reflectors are best suited for applications with standard sensors.
Additional information
| Type: | Reflectors for photoelectric sensor |
| Item: | 40DF sk ZSB |
| Item No.: | 02282512 |
| Format (LxWxH): | Keine Angabe |
| Format (⌀ x height): | 40,2 x 5,5 (6,3) mm |
| Reflective area (LxW): | Keine Angabe |
| Reflective area (⌀): | 37 mm |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | hexagonal |
| Optic size: | Standard triple SW2,3 |
| Polarizing rotation: | yes |
| Application: | Standard sensors |
| Material reflector: | PMMA clear |
| Material bracket: | PMMA high impact white |
