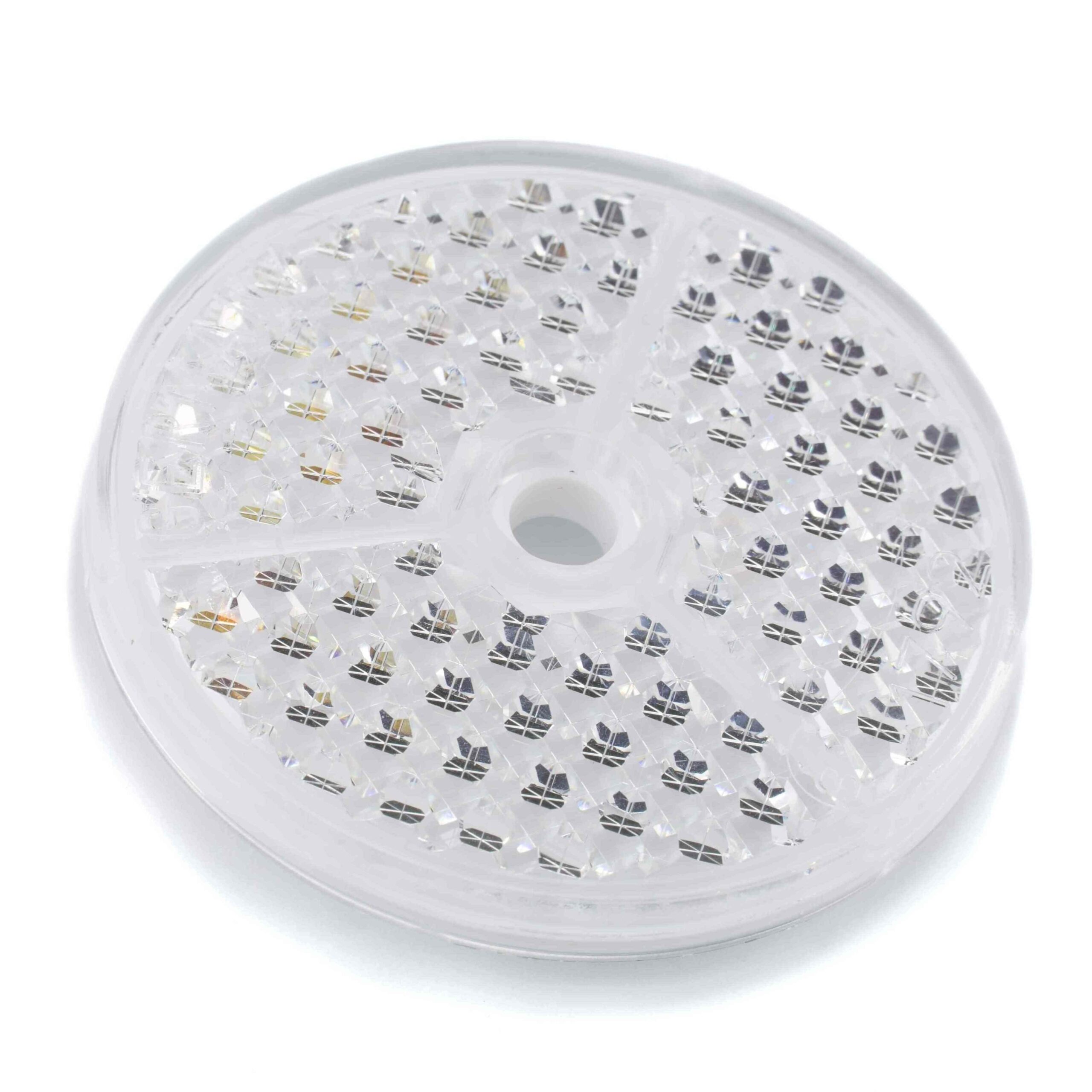

60D 3K clear ZSB
Reflectors, reflectors for guardrails and barriers, a cost effective way to increase safety on the roads. Most products have BAST approval and exceed regulatory requirements. Numerous standard products are available and can be delivered just in time.
Additional information
| Type: | Traffic safety equipment |
| Item: | 60D 3K clear ZSB |
| Item No.: | 80642510 |
| Format (LxWxH): | Keine Angabe |
| Format (⌀ x height): | 62 x 6,5 mm |
| Reflective area (LxW): | Keine Angabe |
| Reflective area (⌀): | 55,5 mm |
| Mounting: | to be screwed |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | rhombus modified |
| Optic size: | Rhombus SW2,6 |
| Polarizing rotation: | Keine Angabe |
| Application: | Keine Angabe |
| Material reflector: | PMMA clear |
| Material bracket: | PMMA high impact white |
Thank you for your interest in our product:
60D 3K clear ZSB / Productnumber: 80642510
60D 3K clear ZSB / Productnumber: 80642510
The following downloads are available:
Download PDF
Download STEP
Download DXF
