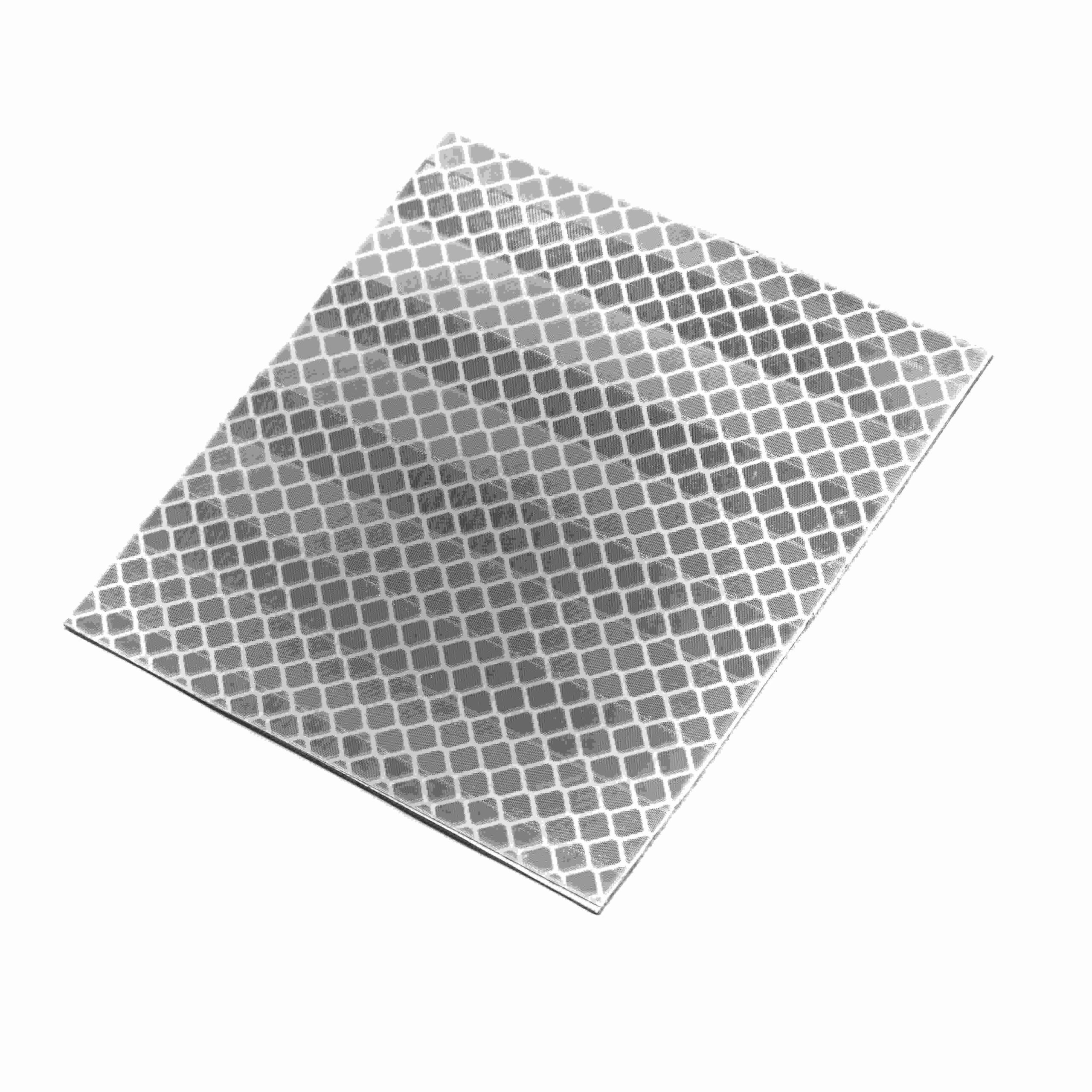

983 749x914mm
The reflective tape is very well suited for applications with standard photoelectric sensors and laser distance measuring devices. It is suitable for outdoor use. In addition to UV resistance and a shelf life of up to 10 years, the self-adhesive backing and the stampability and cuttability are further features that characterize this product.
Additional information
| Type: | Reflective tape |
| Item: | 983 749x914mm |
| Item No.: | 10216110 |
| Format (LxWxH): | 914 x 749 x 0,4 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 914 x 749 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP67 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | Rhombus |
| Optic size: | Micro triple SW0,3 |
| Polarizing rotation: | yes |
| Application: | Standard sensors |
| Material reflector: | PMMA clear |
| Material bracket: | Keine Angabe |
Thank you for your interest in our product:
983 749x914mm / Productnumber: 10216110
983 749x914mm / Productnumber: 10216110
The following downloads are available:
Download PDF
Download STEP
Download DXF
Do you have questions or need more information? Do not hesitate to contact us, we are happy to help you.
