T1000M 230x230mm

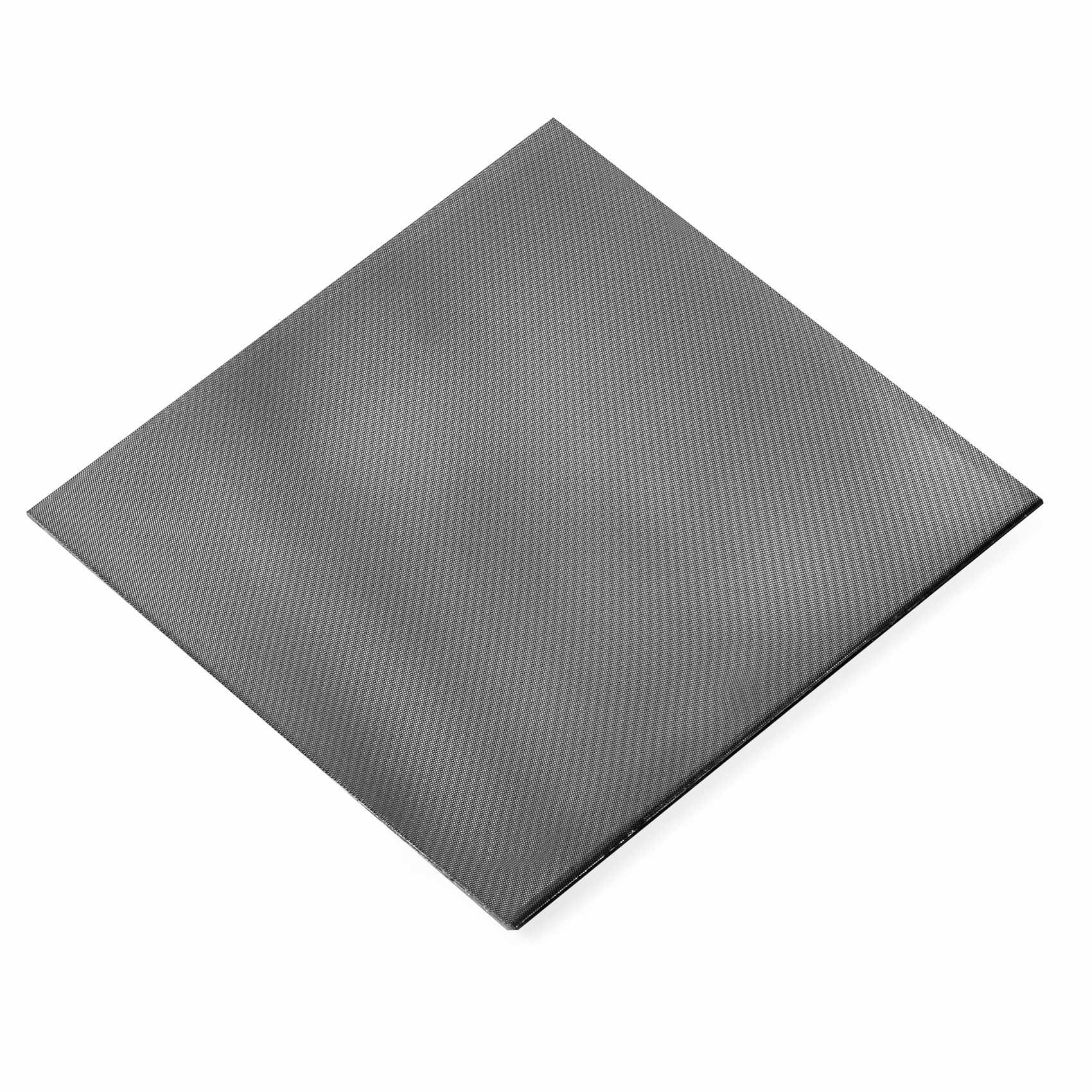

The reflective tape T1000M has a homogeneous high reflective microprismatic structure and is also suitable for sensors with laser light. The use with photoelectric sensors with polarizing filter is not recommended. The film has a self-adhesive, metallized back and can be punched and cut. The reflectivetape is free of ribs and dividing lines. The maximum size of the sheets is 230 x 230 mm.
Additional information
| Type: | Reflective tape |
| Item: | T1000M 230x230mm |
| Item No.: | 05826115 |
| Format (LxWxH): | 230 x 230 x 0,3 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 230 x 230 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP67 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | Rhombus |
| Optic size: | Micro triple SW0,3 |
| Polarizing rotation: | no |
| Application: | Photoelectric sensors without polarizing filter |
| Material reflector: | PMMA clear |
| Material bracket: | Keine Angabe |
Thank you for your interest in our product:
T1000M 230x230mm / Productnumber: 05826115
T1000M 230x230mm / Productnumber: 05826115
The following downloads are available:
Download PDF
Download STEP
Download DXF
