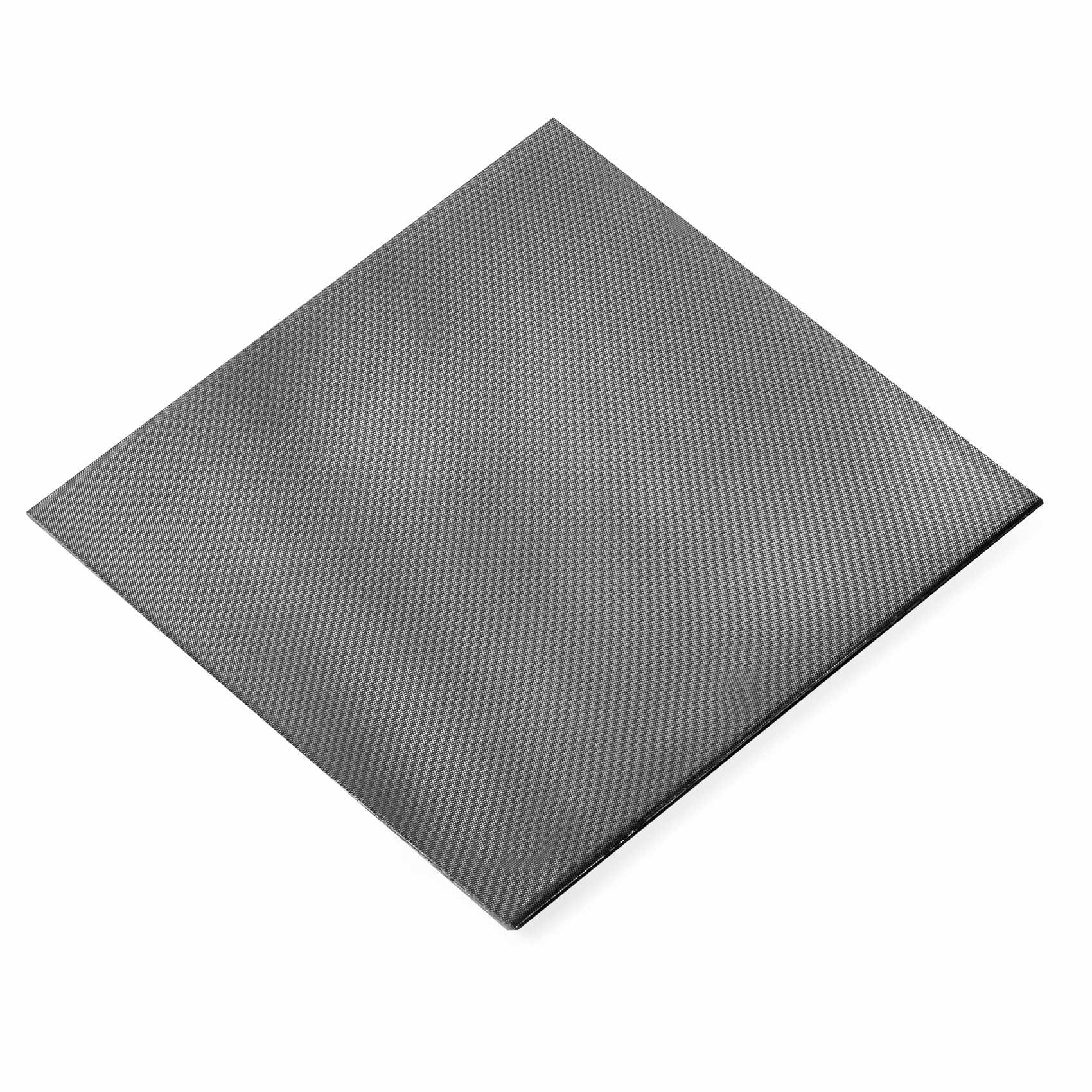

T8000L 100x100mm
The T8000 L microprismatic reflective film is specially developed for sensor applications. The highest reflection values are achieved. Due to its excellent homogeneity, it can be used very well for laser sensors. The film has a self-adhesive, metallized back and can be punched and cut. When cutting and mounting, the orientation of the film must be taken into account. The assembly must always be parallel to the sensor lines. The reflectivetape is free of ribs and dividing lines. The maximum size of the sheets is 230×230 mm
Additional information
| Type: | Reflective tape |
| Item: | T8000L 100x100mm |
| Item No.: | 07786117 |
| Format (LxWxH): | 100 x 100 x 0,4 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 100 x 100 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP67 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | Rhombus |
| Optic size: | Micro triple SW0,3 |
| Polarizing rotation: | yes |
| Application: | Standard sensors / laser photoelectric sensors |
| Material reflector: | PMMA clear |
| Material bracket: | Keine Angabe |
