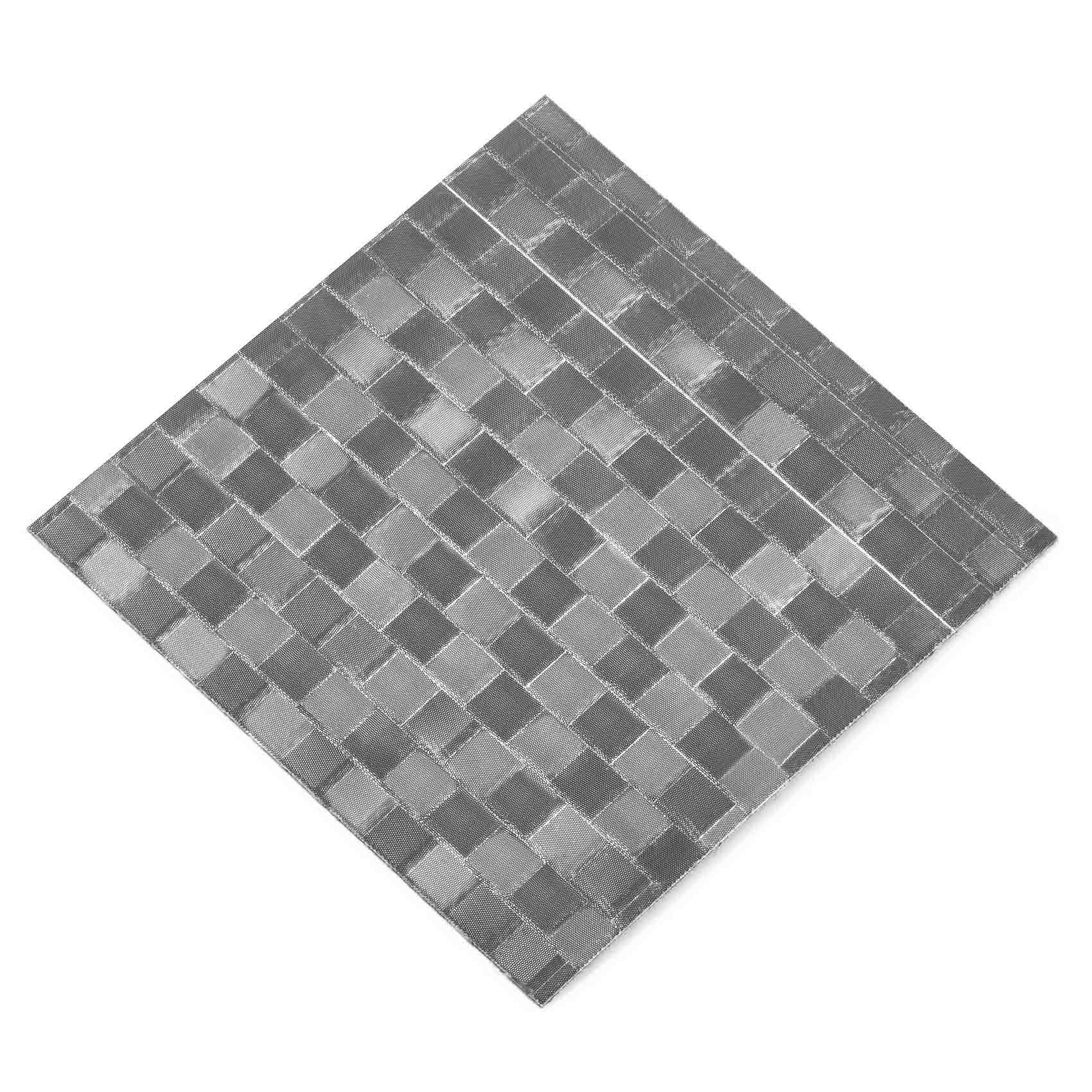

T8100L 200x200mm
The T8100 L microprismatic reflective film is specially developed for sensor applications. The highest reflection values are achieved. Due to its good homogeneity, it can be used for laser sensors and laser distance measuring device. The film has a self-adhesive, metallized back and can be punched and cut. When cutting and mounting, the orientation of the film must be taken into account. The assembly must always be parallel to the sensor lines. The reflectivetape is nearly free of ribs and dividing lines. The tape is available as a roll product with a length of 45.7 m and a maximum width of 600 mm.
Additional information
| Type: | Reflective tape |
| Item: | T8100L 200x200mm |
| Item No.: | 17126110 |
| Format (LxWxH): | 200 x 200 x 0,4 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 200 x 200 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be glued (with tape) |
| Chemical resistance: | Standard |
| Protection: | IP67 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | Rhombus |
| Optic size: | Micro triple SW0,3 |
| Polarizing rotation: | yes |
| Application: | Standard sensors / laser photoelectric sensors |
| Material reflector: | PMMA clear |
| Material bracket: | Keine Angabe |
T8100L 200x200mm / Productnumber: 17126110
The following downloads are available:
Download PDF
Download STEP
Download DXF
