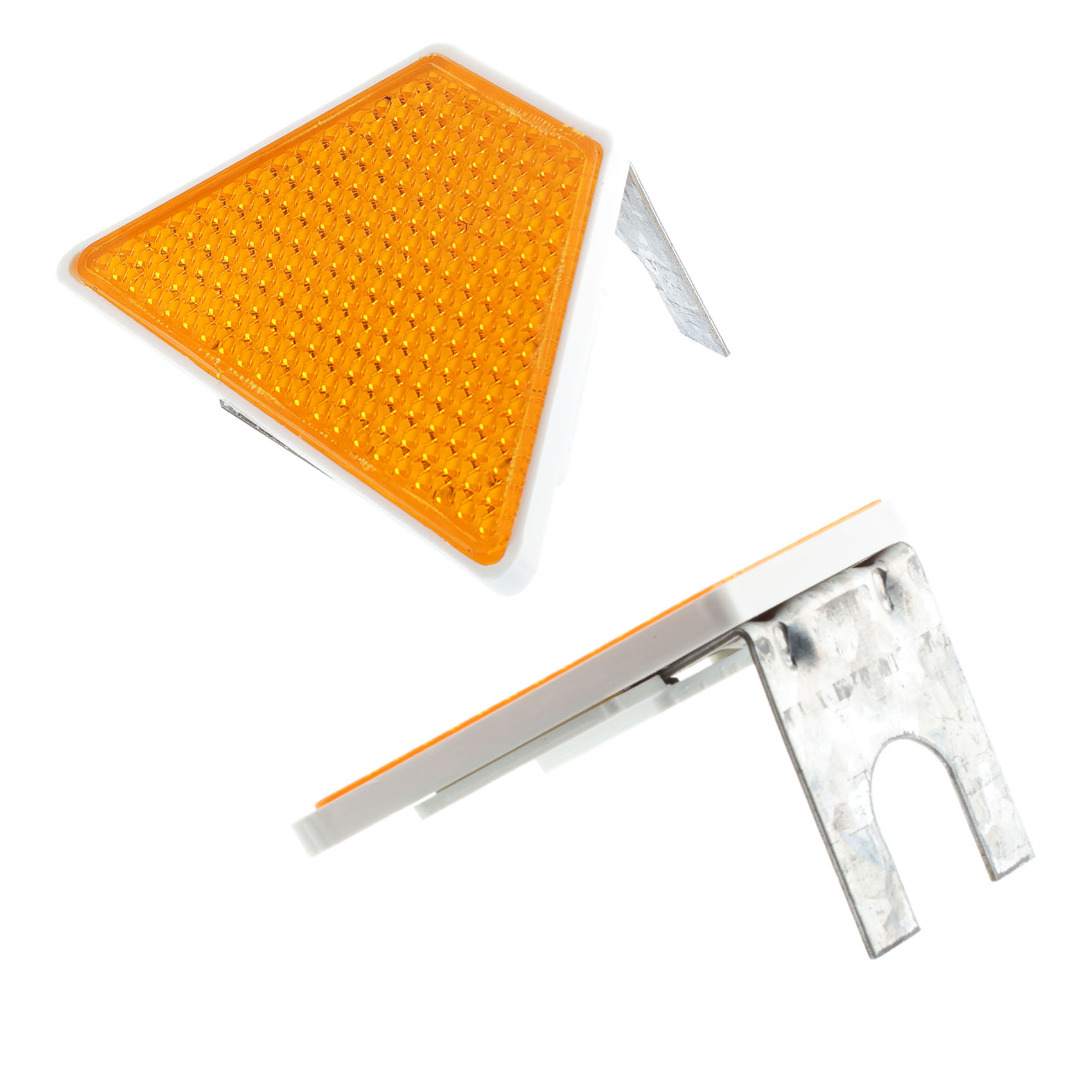

Trapezoidal reflector with bracket amber ZSB
Reflectors, reflectors for guardrails and barriers, a cost effective way to increase safety on the roads. Most products have BAST approval and exceed regulatory requirements. Numerous standard products are available and can be delivered just in time.
Additional information
| Type: | Traffic safety equipment |
| Item: | Trapezreflektor mit Buegel gelb ZSB |
| Item No.: | 96122521 |
| Format (LxWxH): | 125 x 74 x 7,8 mm |
| Format (⌀ x height): | Keine Angabe |
| Reflective area (LxW): | 113,1 x 65 mm |
| Reflective area (⌀): | Keine Angabe |
| Mounting: | to be screwed |
| Chemical resistance: | Standard |
| Protection: | IP68 |
| Operating temperature: | -20°C to 65°C |
| Surface: | Standard |
| Optical structure: | rhombus modified |
| Optic size: | Rhombus SW2,6 |
| Polarizing rotation: | Keine Angabe |
| Application: | Keine Angabe |
| Material reflector: | PMMA amber |
| Material bracket: | PC schlagzäh weiss/ Stahl verzinkt |
Thank you for your interest in our product:
Trapezoidal reflector with bracket amber ZSB / Productnumber: 96122521
Trapezoidal reflector with bracket amber ZSB / Productnumber: 96122521
The following downloads are available:
Download PDF
Download STEP
Download DXF
